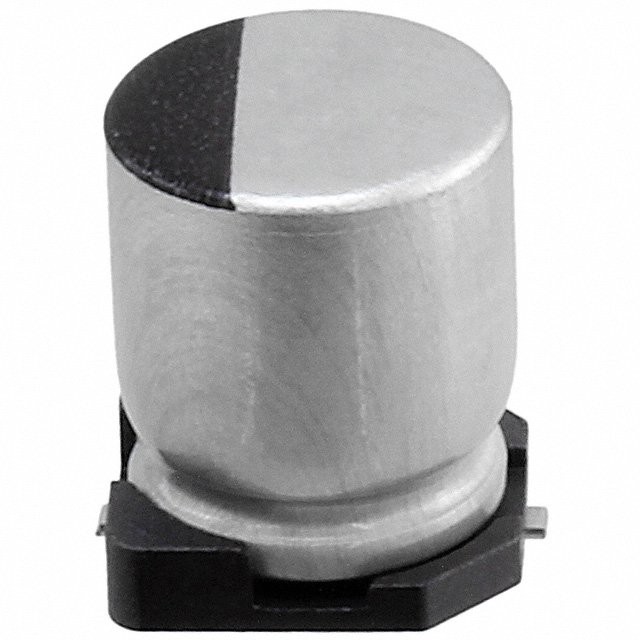

Rubycon 25TXV100M6.3X8

25TXV100M6-3X8 Rubycon 25TXV100M6.3X8
25TXV100M6.3X8
Rubycon

Product Information

Diameter:
6.3mm
Ripple Current:
110mA
Mounting Type:
Surface Mount
Dimensions:
6.3 (Dia.) x 8mm
Lead Diameter:
0.8mm
Tolerance Plus:
+20%
Series:
TXV
Minimum Operating Temperature:
-40°C
Height:
8mm
Capacitance:
100 µF
Tolerance Minus:
-20%
Construction:
Cylindrical
Voltage:
25 V dc
Leakage Current:
0.01 CV or 3 μA
Lifetime:
1000h
Lead Pitch:
1.8mm
Maximum Operating Temperature:
+125°C
Tolerance:
±20%
Technology:
Electrolytic
Ratings:
AEC-Q200
HTSUS:
8532.22.0020
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
700mOhm
Polarization:
Polar
Capacitance:
100 µF
Operating Temperature:
-40°C ~ 125°C
Package / Case:
Radial, Can - SMD
Tolerance:
±20%
Voltage - Rated:
25 V
Height - Seated (Max):
0.315" (8.00mm)
title:
25TXV100M6.3X8
Ripple Current @ High Frequency:
110 mA @ 100 kHz
REACH Status:
REACH Unaffected
Ripple Current @ Low Frequency:
55 mA @ 120 Hz
edacadModel:
25TXV100M6.3X8 Models
Applications:
Automotive
Surface Mount Land Size:
0.260" L x 0.260" W (6.60mm x 6.60mm)
edacadModelUrl:
/en/models/3568657
Size / Dimension:
0.248" Dia (6.30mm)
standardLeadTime:
20 Weeks
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Surface Mount
Series:
TXV
Packaging:
Tape & Reel (TR)
Lifetime @ Temp.:
1000 Hrs @ 125°C
Lead Spacing:
-
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Rubycon. The manufacturer part number is 25TXV100M6.3X8. Its diameter is 6.3mm. Furthermore, 110ma is the ripple current. The product is available in surface mount configuration. The given dimensions of the product include 6.3 (dia.) x 8mm. Furthermore, the lead has 0.8mm diameter. It features a given value of +20% tolerance plus. The product txv, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40°c. In addition, the height is 8mm. It provides a 100 µf of capacitance value. While it has tolerance minus of -20%. The product has been well-designed with cylindrical construction. It carries a 25 v dc of voltage. It harbors 0.01 cv or 3 μa of leakage current. It provides a long-lasting service for a period of 1000h. The lead features 1.8mm pitch. It has a maximum operating temperature of +125°c. It features ±20% of tolerance value. This product use electrolytic technology. It is rated with aec-q200. It is assigned with possible HTSUS value of 8532.22.0020. The product is rohs3 compliant. It carries ESR (Equivalent Series Resistance) of 700mohm. The product features a [Ploarization] polarity. The product has -40°c ~ 125°c operating temperature range. Moreover, the product comes in radial, can - smd. It also exhibits voltage rating of 25 v. It has the maximum seated height of 0.315" (8.00mm). Additionally, it carries a ripple current and high frequency of 110 ma @ 100 khz. In addition, it is reach unaffected. Its ripple current at low frequency is 55 ma @ 120 hz. The product is widely employed in automotive. It has typical surface-mount land sizes, such as 0.260" l x 0.260" w (6.60mm x 6.60mm). The product's diameters include 0.248" dia (6.30mm). It has a long 20 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). In addition, tape & reel (tr) is the available packaging type of the product. This product offers longer life span for 1000 hrs @ 125°c. The product is designated with the ear99 code number.

pdf icon
TXV SERIES CHIP ALUMINUM ELECTROLYTIC CAPACITORS Data Sheet(Technical Reference)
pdf icon
TXV Series Datasheet(Datasheets)
