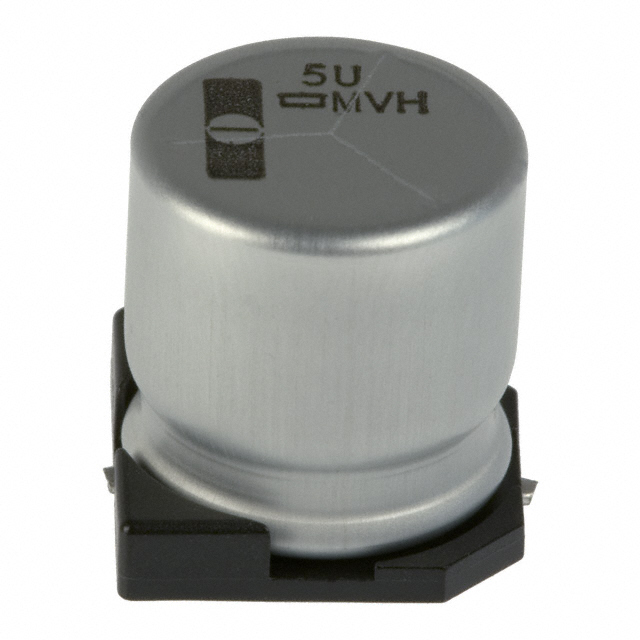

Nippon Chemi-Con 100μF Electrolytic Capacitor 50V dc, Surface Mount - EMVH500ARA101MKE0S
Product Information
Diameter:
12.5mm
Ripple Current:
550mArms
Polarised:
Polar
Dimensions:
13 x 13 x 13.5mm
Mounting Type:
Surface Mount
Series:
MVH
Length:
13mm
Equivalent Series Resistance:
3.5Ω
Height:
13.5mm
Capacitance:
100µF
Depth:
13mm
Voltage:
50V dc
Leakage Current:
4 μA
Lifetime:
5000h
Lead Pitch:
4.2mm
Maximum Operating Temperature:
+125°C
Tolerance:
±20%
Minimum Operating Temperature:
-40°C
Technology:
Aluminium Electrolytic
Ratings:
-
HTSUS:
8532.22.0020
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
230mOhm @ 100kHz
Polarization:
Polar
Capacitance:
100 µF
Operating Temperature:
-40°C ~ 125°C
Package / Case:
Radial, Can - SMD
Tolerance:
±20%
Voltage - Rated:
50 V
Height - Seated (Max):
0.531" (13.50mm)
Ripple Current @ High Frequency:
550 mA @ 100 kHz
REACH Status:
REACH Unaffected
Ripple Current @ Low Frequency:
220 mA @ 120 Hz
edacadModel:
EMVH500ARA101MKE0S Models
Applications:
Automotive
Surface Mount Land Size:
0.512" L x 0.512" W (13.00mm x 13.00mm)
edacadModelUrl:
/en/models/756972
Package:
Tape & Reel (TR)
Size / Dimension:
0.492" Dia (12.50mm)
standardLeadTime:
28 Weeks
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Surface Mount
Series:
Alchip™- MVH
Lifetime @ Temp.:
5000 Hrs @ 125°C
Lead Spacing:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search EMVH500ARA101MKE0S on website for other similar products.
We accept all major payment methods for all products including ET24732789. Please check your shopping cart at the time of order.
You can order CHEMI-CON brand products with EMVH500ARA101MKE0S directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Aluminium Capacitors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nippon Chemi-Con 100μF Electrolytic Capacitor 50V dc, Surface Mount - EMVH500ARA101MKE0S. You can also check on our website or by contacting our customer support team for further order details on Nippon Chemi-Con 100μF Electrolytic Capacitor 50V dc, Surface Mount - EMVH500ARA101MKE0S.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET24732789 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "CHEMI-CON" products on our website by using Enrgtech's Unique Manufacturing Part Number ET24732789.
Yes. We ship EMVH500ARA101MKE0S Internationally to many countries around the world.
This is Nippon Chemi-Con 100μF Electrolytic Capacitor 50V dc Surface Mount - manufactured by CHEMI-CON. The manufacturer part number is EMVH500ARA101MKE0S. Its diameter is 12.5mm. Furthermore, 550marms is the ripple current. Furthermore, it is polar polarised. The given dimensions of the product include 13 x 13 x 13.5mm. The product is available in surface mount configuration. The product mvh, is a highly preferred choice for users. Its accurate length is 13mm. It has 3.5ω equivalent series resistance. In addition, the height is 13.5mm. It provides a 100µf of capacitance value. The product comes in 13mm depth. It carries a 50v dc of voltage. It harbors 4 μa of leakage current. It provides a long-lasting service for a period of 5000h. The lead features 4.2mm pitch. It has a maximum operating temperature of +125°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -40°c. This product use aluminium electrolytic technology. It is assigned with possible HTSUS value of 8532.22.0020. The product is rohs3 compliant. It carries ESR (Equivalent Series Resistance) of 230mohm @ 100khz. The product features a [Ploarization] polarity. It provides a 100 µf of capacitance value. The product has -40°c ~ 125°c operating temperature range. Moreover, the product comes in radial, can - smd. It also exhibits voltage rating of 50 v. It has the maximum seated height of 0.531" (13.50mm). Additionally, it carries a ripple current and high frequency of 550 ma @ 100 khz. In addition, it is reach unaffected. Its ripple current at low frequency is 220 ma @ 120 hz. The product is widely employed in automotive. It has typical surface-mount land sizes, such as 0.512" l x 0.512" w (13.00mm x 13.00mm). It is shipped in tape & reel (tr) package . The product's diameters include 0.492" dia (12.50mm). It has a long 28 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). The product alchip™- mvh, is a highly preferred choice for users. This product offers longer life span for 5000 hrs @ 125°c. The product is designated with the ear99 code number.
