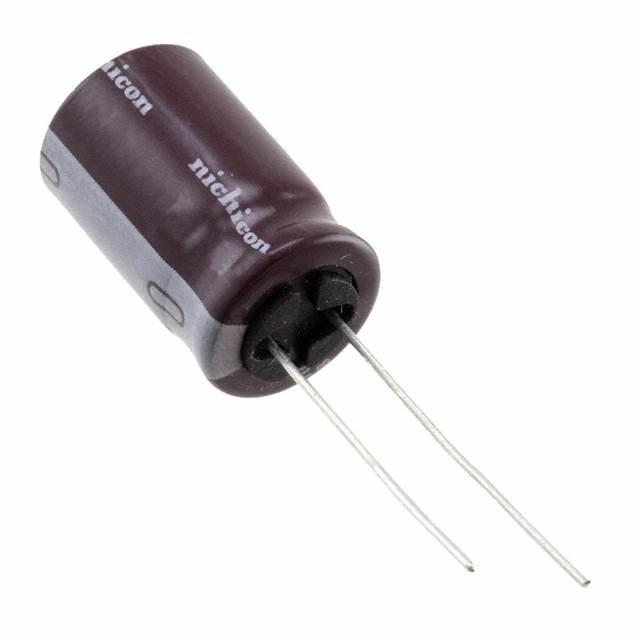

Nichicon UPS1A222MHD

UPS1A222MHD Nichicon
UPS1A222MHD
UPS1A222MHD
Nichicon

Product Information

Diameter:
12.5mm
Ripple Current:
1.25A
Dimensions:
12.5 (Dia.) x 20mm
Mounting Type:
Radial, Through Hole
Series:
PS
Height:
20mm
Capacitance:
2200µF
Voltage:
10V dc
Leakage Current:
4 μA
Lifetime:
3000h
Lead Pitch:
5mm
Maximum Operating Temperature:
+105°C
Tolerance:
±20%
Minimum Operating Temperature:
-55°C
Technology:
Aluminium Electrolytic
Ratings:
-
HTSUS:
8532.22.0020
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
-
Polarization:
Polar
Capacitance:
2200 µF
Operating Temperature:
-55°C ~ 105°C
Package / Case:
Radial, Can
Tolerance:
±20%
Voltage - Rated:
10 V
Height - Seated (Max):
0.866" (22.00mm)
title:
UPS1A222MHD
Ripple Current @ High Frequency:
1.25 A @ 100 kHz
REACH Status:
REACH Unaffected
Ripple Current @ Low Frequency:
1.088 A @ 120 Hz
edacadModel:
UPS1A222MHD Models
Applications:
General Purpose
Surface Mount Land Size:
-
edacadModelUrl:
/en/models/2599907
Impedance:
75 mOhms
Size / Dimension:
0.492" Dia (12.50mm)
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Through Hole
Series:
UPS
Packaging:
Bulk
Lifetime @ Temp.:
3000 Hrs @ 105°C
Lead Spacing:
0.197" (5.00mm)
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Nichicon. The manufacturer part number is UPS1A222MHD. Its diameter is 12.5mm. Furthermore, 1.25a is the ripple current. The given dimensions of the product include 12.5 (dia.) x 20mm. The product is available in radial, through hole configuration. The product ps, is a highly preferred choice for users. In addition, the height is 20mm. It provides a 2200µf of capacitance value. It carries a 10v dc of voltage. It harbors 4 μa of leakage current. It provides a long-lasting service for a period of 3000h. The lead features 5mm pitch. It has a maximum operating temperature of +105°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -55°c. This product use aluminium electrolytic technology. It is assigned with possible HTSUS value of 8532.22.0020. The product is rohs3 compliant. The product features a [Ploarization] polarity. It provides a 2200 µf of capacitance value. The product has -55°c ~ 105°c operating temperature range. Moreover, the product comes in radial, can. It also exhibits voltage rating of 10 v. It has the maximum seated height of 0.866" (22.00mm). Additionally, it carries a ripple current and high frequency of 1.25 a @ 100 khz. In addition, it is reach unaffected. Its ripple current at low frequency is 1.088 a @ 120 hz. The product is widely employed in general purpose. It has an impedance value of 75 mohms. The product's diameters include 0.492" dia (12.50mm). Its typical moisture sensitivity level is not applicable. The product is available in through hole configuration. The product ups, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. This product offers longer life span for 3000 hrs @ 105°c. It is assigned with 0.197" (5.00mm) of lead spacing. The product is designated with the ear99 code number.
