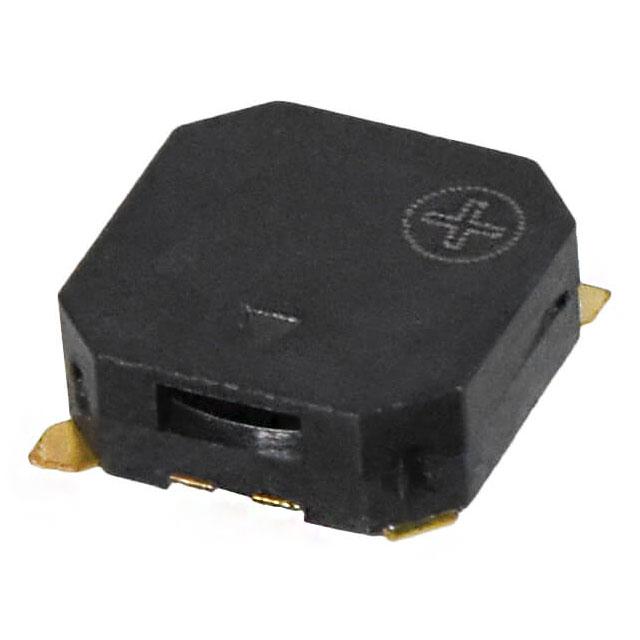

CUI Devices CMT-8503-90-SMT-TR

CMT-8503-90-SMT-TR CUI Devices
CMT-8503-90-SMT-TR
CUI Devices

Product Information

Mounting Type:
Surface Mount
Drive Type:
External
Maximum Supply Voltage:
4.5V dc
Minimum Supply Voltage:
3.6V dc
Sound Level:
90dB
Ratings:
-
Port Location:
Side
HTSUS:
8531.80.9041
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 85°C
Approval Agency:
-
Input Type:
Zero-Peak Signal
Voltage Range:
2.5 ~ 4.5V
Voltage - Rated:
3.6 V
Height - Seated (Max):
0.138" (3.50mm)
Sound Pressure Level (SPL):
90dB @ 3.6V, 10cm
REACH Status:
REACH Unaffected
edacadModel:
CMT-8503-90-SMT-TR Models
Current - Supply:
90mA
edacadModelUrl:
/en/models/10326209
Package:
Tape & Reel (TR)
Size / Dimension:
0.335" L x 0.335" W (8.50mm x 8.50mm)
Duration:
-
Termination:
Solder Pads
standardLeadTime:
18 Weeks
Driver Circuitry:
Transducer, Externally Driven
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Ingress Protection:
-
Mounting Type:
Surface Mount
Operating Mode:
-
Series:
CMT
Frequency:
3.1kHz
Technology:
Magnetic
Base Product Number:
CMT-8503
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by CUI Devices. The manufacturer part number is CMT-8503-90-SMT-TR. The product is available in surface mount configuration. The product features a external drive. The product requires a maximum 4.5v dc supply voltage . It has a minimum 3.6v dc supply voltage . Its sound level is about 90db . Port location: side. It is assigned with possible HTSUS value of 8531.80.9041. The product is rohs3 compliant. The product has -40°c ~ 85°c operating temperature range. It carries zero-peak signal input type. While the voltage range is 2.5 ~ 4.5v. It also exhibits voltage rating of 3.6 v. It has the maximum seated height of 0.138" (3.50mm). Features 90db @ 3.6v, 10cm sound pressure level. In addition, it is reach unaffected. The current - supply of a bespoke product is 90ma. It is shipped in tape & reel (tr) package . The product's diameters include 0.335" l x 0.335" w (8.50mm x 8.50mm). The product features solder pads termination style. It has a long 18 weeks standard lead time. It has a transducer, externally driven driver circuitry. Its typical moisture sensitivity level is 1 (unlimited). The product cmt, is a highly preferred choice for users. Supplied with 3.1khz of frequency. This product use magnetic technology. Moreover, it corresponds to cmt-8503, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Datasheet - CMT-8503-90-SMT-TR(Technical Reference)
pdf icon
CMT-8503-90-SMT-TR Datasheet(Datasheets)
pdf icon
Buzzer Basics(Mfg Application Notes)
pdf icon
Understanding and Measuring Sensitivity in Audio Components(Mfg Application Notes)
