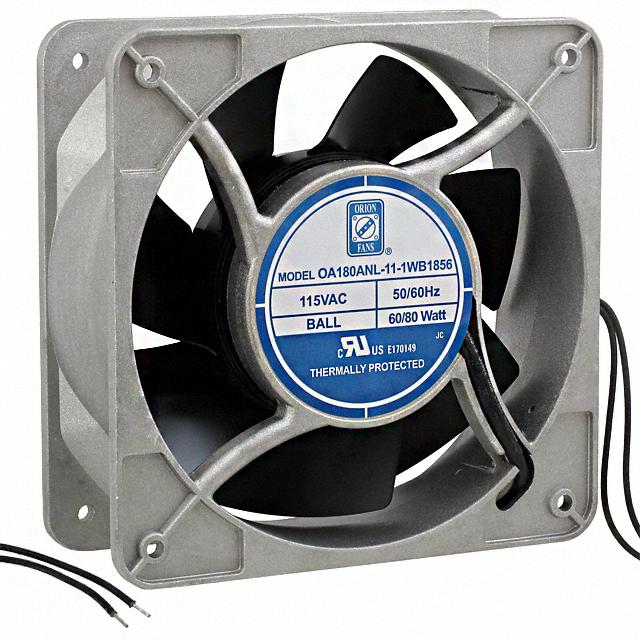

Orion Fans OA180ANL-11-1WB1856

OA180ANL-11-1WB1856 Orion Fans
Orion Fans

Product Information

Material - Blade:
Metal
HTSUS:
8414.59.6590
RoHS Status:
ROHS3 Compliant
Width:
65.00mm
Power (Watts):
80.0W
Air Flow:
330.0 CFM (9.24m³/min)
Approval Agency:
cURus, TUV
Voltage Range:
100 ~ 120VAC
Noise:
65.0dB
Voltage - Rated:
115VAC
Lifetime @ Temp.:
50000 Hrs @ 55°C
REACH Status:
REACH Unaffected
Bearing Type:
Ball
Operating Temperature:
-22 ~ 176°F (-30 ~ 80°C)
RPM:
3250 RPM
Manufacturer:
Orion Fans
Static Pressure:
0.800 in H2O (199.3 Pa)
Size / Dimension:
Square - 180mm L x 180mm H
Termination:
2 Wire Leads
standardLeadTime:
19 Weeks
Current Rating (Amps):
-
Moisture Sensitivity Level (MSL):
Not Applicable
Ingress Protection:
IP56 - Dust Protected, Water Resistant
Features:
Thermal Overload Protector (TOP)
Weight:
3.7 lbs (1.7 kg)
Series:
OA180ANL
Material - Frame:
Aluminum
Packaging:
Box
Fan Type:
Tubeaxial
Base Product Number:
OA180AN
ECCN:
EAR99
Checking for live stock

This is manufactured by Orion Fans. The manufacturer part number is OA180ANL-11-1WB1856. The blades are constructed from robust metal materials. It is assigned with possible HTSUS value of 8414.59.6590. The product is rohs3 compliant. Furthermore, the product is 65.00mm wide. The product features power and watts of 80.0w. It has a 330.0 cfm (9.24m³/min) air flow rate. It is approved by curus, tuv. While the voltage range is 100 ~ 120vac. It has noise values of 65.0db. It also exhibits voltage rating of 115vac. This product offers longer life span for 50000 hrs @ 55°c. In addition, it is reach unaffected. This has integrated with a ball, a bearing with long-lasting features. The product has -22 ~ 176°f (-30 ~ 80°c) operating temperature range. It provides maximum rpm up to 3250 rpm. The orion fans's product offers user-desired applications. The product has a 0.800 in h2o (199.3 pa) static pressure. The product's diameters include square - 180mm l x 180mm h. The product features 2 wire leads termination style. It has a long 19 weeks standard lead time. Its typical moisture sensitivity level is not applicable. It is IP rated with ip56 - dust protected, water resistant. The splendid features of the product include thermal overload protector (top). The typical product's weight is 3.7 lbs (1.7 kg). The product oa180anl, is a highly preferred choice for users. The frame of the product is made from highly durable aluminum materials. In addition, box is the available packaging type of the product. The latest designed fan is a type of tubeaxial offering unmatchable applications. Moreover, it corresponds to oa180an, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Metal Fans Catalog(Datasheets)
pdf icon
OA180ANL Series Datasheet(Datasheets)
pdf icon
AC Fans Accessories Matrix(Application Notes)
pdf icon
AC,DC Part Number Guide(Application Notes)
pdf icon
All Metal Fans Sales Sheet(Application Notes)
pdf icon
Selector Guide(Design Resources)
pdf icon
Technical Terms(Design Resources)
