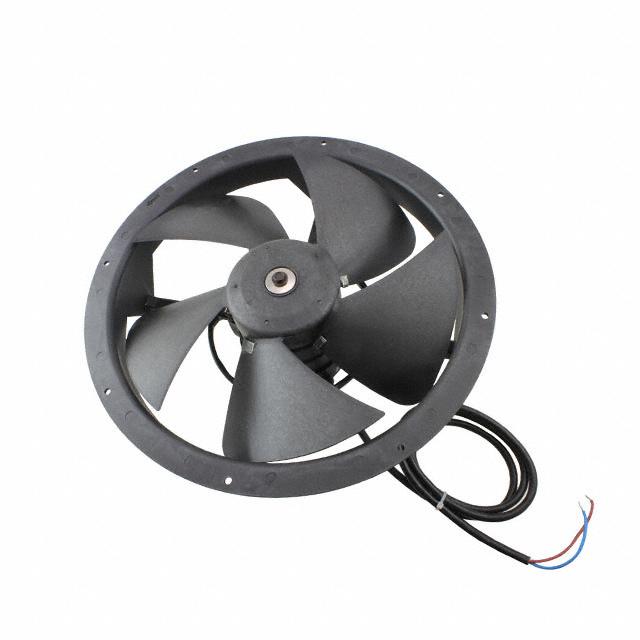

Delta Electronics AFL28A2LU-BRA01

AFL28A2LU-BRA01 Delta Electronics
Delta Electronics

Product Information

Material - Blade:
Plastic
HTSUS:
8414.59.6590
RoHS Status:
ROHS3 Compliant
Width:
105.0mm
Power (Watts):
16.00W
Air Flow:
460.0 CFM (12.88m³/min)
Approval Agency:
TUV, UL
Voltage Range:
200 ~ 240VAC
Noise:
55.0dB(A)
Voltage - Rated:
230VAC
title:
AFL28A2LU-BRA01
Lifetime @ Temp.:
60000 Hrs @ 40°C
REACH Status:
REACH Unaffected
Bearing Type:
Ball
Operating Temperature:
-4 ~ 140°F (-20 ~ 60°C)
RPM:
1400 RPM
Manufacturer:
Delta Electronics
Static Pressure:
0.430 in H2O (107.1 Pa)
Size / Dimension:
Round - 280mm Dia
Termination:
2 Wire Leads
standardLeadTime:
32 Weeks
Current Rating (Amps):
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Ingress Protection:
IP55 - Dust Protected, Water Resistant
Features:
-
Weight:
2.5 lbs (1.1 kg)
Series:
AFL
Material - Frame:
Plastic
Packaging:
Box
Fan Type:
Tubeaxial
Base Product Number:
AFL28A
ECCN:
EAR99
Checking for live stock

This is manufactured by Delta Electronics. The manufacturer part number is AFL28A2LU-BRA01. The blades are constructed from robust plastic materials. It is assigned with possible HTSUS value of 8414.59.6590. The product is rohs3 compliant. Furthermore, the product is 105.0mm wide. The product features power and watts of 16.00w. It has a 460.0 cfm (12.88m³/min) air flow rate. It is approved by tuv, ul. While the voltage range is 200 ~ 240vac. It has noise values of 55.0db(a). It also exhibits voltage rating of 230vac. This product offers longer life span for 60000 hrs @ 40°c. In addition, it is reach unaffected. This has integrated with a ball, a bearing with long-lasting features. The product has -4 ~ 140°f (-20 ~ 60°c) operating temperature range. It provides maximum rpm up to 1400 rpm. The delta electronics's product offers user-desired applications. The product has a 0.430 in h2o (107.1 pa) static pressure. The product's diameters include round - 280mm dia. The product features 2 wire leads termination style. It has a long 32 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). It is IP rated with ip55 - dust protected, water resistant. The typical product's weight is 2.5 lbs (1.1 kg). The product afl, is a highly preferred choice for users. The frame of the product is made from highly durable plastic materials. In addition, box is the available packaging type of the product. The latest designed fan is a type of tubeaxial offering unmatchable applications. Moreover, it corresponds to afl28a, a base product number of the product. The product is designated with the ear99 code number.
