Minimum Input Voltage:
180V ac
Weight:
12.5lb
Power:
5kW
Efficiency:
93%
Series:
HPL5K0
Minimum Operating Temperature:
-20°C
Length:
13.00in
Maximum Input Voltage:
264V ac
Hazardous Area Certification:
No
Width:
5.00 in
Depth:
5in
Standards/Approvals:
ANSI/AAMI ES60601-1:2005 & CSA C22.2, CSA 22.2 No.62368-1, EN60601-1/2006, EN62368-1, IEC60601-1 Ed 3.1, IEC62368-1 Ed 2, No.60601-1:08, UL62368-1
Maximum Output Voltage:
100V dc
SMPS Output Current:
50 A

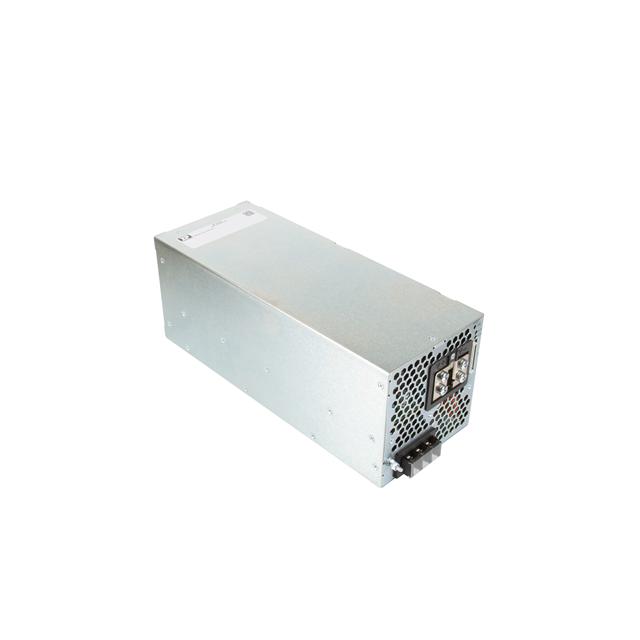

Product Type:
AC/DC Power Supply
Maximum Operating Temperature:
70°C
Output Current:
50A
Mount Type:
Chassis
HTSUS:
8504.40.9540
RoHS Status:
ROHS3 Compliant
Power (Watts):
5000W
Approval Agency:
CB,CE, EN, EKCA, UL
Voltage - Input:
180 ~ 264 VAC (3 Phase)
Type:
Enclosed
Applications:
ITE (Commercial), Medical
Voltage - Output 4:
-
Voltage - Output 5:
-
Voltage - Output 6:
-
Voltage - Output 1:
100V
Voltage - Output 2:
-
Voltage - Output 3:
-
Efficiency:
92%
Package:
Box
Minimum Load Required:
No
Size / Dimension:
13.00" L x 5.00" W x 5.00" H (330.2mm x 127.0mm x 127.0mm)
standardLeadTime:
36 Weeks
Voltage - Isolation:
4 kV
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
I²C Interface, PFC, PMBus™, Programmable Voltage, Remote On/Off, Remote Sense, Standby Output
Mounting Type:
Chassis Mount
Series:
HPL5K0 (5000W)
Current - Output 1:
50 A
Operating Temperature:
-20°C ~ 70°C (With Derating)
Standard Number:
60601-1; 60950-1; 62368-1
Number of Outputs:
1
ECCN:
EAR99
