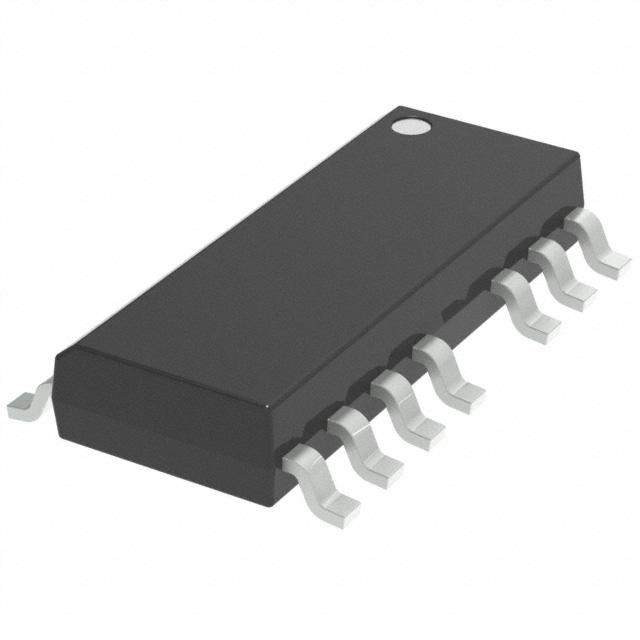

onsemi NCP13992ASDR2G

NCP13992ASDR2G onsemi
onsemi

Product Information

Voltage - Start Up:
11.9 V
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Supplier Device Package:
16-SOIC
Operating Temperature:
-50°C ~ 150°C (TJ)
Voltage - Breakdown:
600V
Voltage - Supply (Vcc/Vdd):
9.5V ~ 20V
Package / Case:
16-SOIC (0.154", 3.90mm Width), 14 Leads
Internal Switch(s):
No
Frequency - Switching:
20kHz ~ 750kHz
REACH Status:
REACH Unaffected
Topology:
Half-Bridge
Control Features:
EN, Frequency Control, Soft Start
Duty Cycle:
50%
Package:
Tape & Reel (TR)
Output Isolation:
Isolated
Moisture Sensitivity Level (MSL):
3 (168 Hours)
standardLeadTime:
26 Weeks
Mounting Type:
Surface Mount
Series:
-
Fault Protection:
Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, Short Circuit
Base Product Number:
NCP13992
ECCN:
EAR99
Checking for live stock

This is manufactured by onsemi. The manufacturer part number is NCP13992ASDR2G. It bears start up voltage of 11.9 v. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. 16-soic is the supplier device package value. The product has -50°c ~ 150°c (tj) operating temperature range. The nominal breakdown voltage of 600v. The supply voltage of a bespoke product includes 9.5v ~ 20v. Moreover, the product comes in 16-soic (0.154", 3.90mm width), 14 leads. Internal switch options: no. The switching frequency of the standard product is 20khz ~ 750khz. In addition, it is reach unaffected. Topology includes half-bridge. Possible control features include en, frequency control, soft start. Provides 50% duty cycles. It is shipped in tape & reel (tr) package . Features isolated output isolation. Its typical moisture sensitivity level is 3 (168 hours). It has a long 26 weeks standard lead time. The product is available in surface mount configuration. Fault protection features include current limiting, open loop, over load, over temperature, over voltage, short circuit. Moreover, it corresponds to ncp13992, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
NCP13992(Datasheets)
