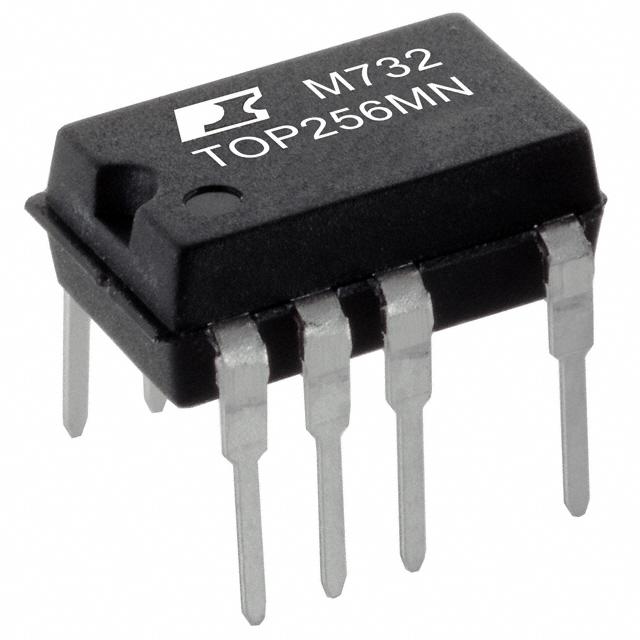

Power Integrations TOP256MN
Product Information
Priced to Clear:
Yes
Number of Outputs:
1
Power Switch Type:
Off Line Switcher
Dimensions:
9.83 x 6.6 x 3.68mm
Mounting Type:
Through Hole
Series:
TOP256
Minimum Operating Temperature:
-40 °C
Height:
3.68mm
Current:
4.08A
Width:
6.6mm
Length:
9.83mm
Package Type:
SDIPC
Switch On Resistance:
4.75Ω
Protection Features:
Over-Temperature
Power Rating:
64W
Power Switch Features:
Higher Design Flexibility, Low System Cost
Maximum Operating Temperature:
+150 °C
Pin Count:
10
HTSUS:
8542.39.0001
RoHS Status:
RoHS Compliant
Supplier Device Package:
SDIP-10C
Power (Watts):
34 W
Voltage - Breakdown:
700V
Voltage - Supply (Vcc/Vdd):
-
Package / Case:
10-SDIP (0.300", 7.62mm), 9 Leads
Internal Switch(s):
Yes
Frequency - Switching:
66kHz
REACH Status:
REACH Unaffected
edacadModel:
TOP256MN Models
edacadModelUrl:
/en/models/1657667
Operating Temperature:
-40°C ~ 150°C (TJ)
Topology:
Flyback
Control Features:
-
Duty Cycle:
78%
Package:
Tube
Output Isolation:
Isolated
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Through Hole
Series:
TOPSwitch®-HX
Fault Protection:
Current Limiting, Over Temperature, Over Voltage
Base Product Number:
TOP256
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search TOP256MN on website for other similar products.
We accept all major payment methods for all products including ET12630985. Please check your shopping cart at the time of order.
You can order Power Integrations brand products with TOP256MN directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in AC DC Converters, Offline Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Power Integrations TOP256MN. You can also check on our website or by contacting our customer support team for further order details on Power Integrations TOP256MN.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12630985 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Power Integrations" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12630985.
Yes. We ship TOP256MN Internationally to many countries around the world.
This is manufactured by Power Integrations. The manufacturer part number is TOP256MN. Priced to Clear Options - yes. Additionally, the product is supplied with 1 outputs. Its power switch is of off line switcher type . The given dimensions of the product include 9.83 x 6.6 x 3.68mm. The product is available in through hole configuration. The product top256, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40 °c. In addition, the height is 3.68mm. Features a 4.08a current in A. Furthermore, the product is 6.6mm wide. Its accurate length is 9.83mm. The package is a sort of sdipc. In addition, it has about 4.75ω switch on resistance . It provides robust protection features, such as over-temperature. Feature 64w of power rating. It has a maximum operating temperature of +150 °c. It contains 10 pins. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs compliant. sdip-10c is the supplier device package value. The product features power and watts of 34 w. The nominal breakdown voltage of 700v. Moreover, the product comes in 10-sdip (0.300", 7.62mm), 9 leads. Internal switch options: yes. The switching frequency of the standard product is 66khz. In addition, it is reach unaffected. The product has -40°c ~ 150°c (tj) operating temperature range. Topology includes flyback. Provides 78% duty cycles. It is shipped in tube package . Features isolated output isolation. Its typical moisture sensitivity level is 1 (unlimited). The product topswitch®-hx, is a highly preferred choice for users. Fault protection features include current limiting, over temperature, over voltage. Moreover, it corresponds to top256, a base product number of the product. The product is designated with the ear99 code number.
