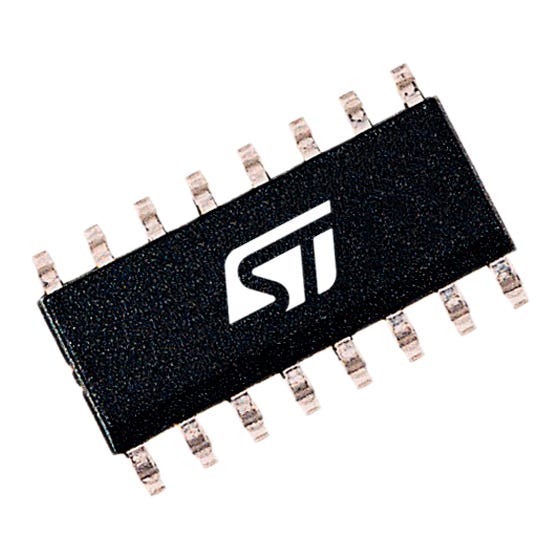

STMicroelectronics VIPER26LDTR

VIPER26LDTR STMicroelectronics
VIPER26LDTR
STMicroelectronics

Product Information

Voltage - Start Up:
13 V
HTSUS:
8542.39.0060
RoHS Status:
ROHS3 Compliant
Supplier Device Package:
16-SO
Power (Watts):
20 W
Voltage - Breakdown:
800V
Voltage - Supply (Vcc/Vdd):
11.5V ~ 23.5V
Package / Case:
16-SOIC (0.154", 3.90mm Width)
Internal Switch(s):
Yes
Frequency - Switching:
60kHz
title:
VIPER26LDTR
REACH Status:
REACH Unaffected
edacadModel:
VIPER26LDTR Models
edacadModelUrl:
/en/models/2682960
Operating Temperature:
-40°C ~ 150°C (TJ)
Manufacturer:
STMicroelectronics
Control Features:
-
Duty Cycle:
70%
Output Isolation:
Either
Moisture Sensitivity Level (MSL):
3 (168 Hours)
standardLeadTime:
18 Weeks
Mounting Type:
Surface Mount
Series:
VIPer™ plus
Fault Protection:
Current Limiting, Over Temperature
Packaging:
Tape & Reel (TR)
Topology:
Flyback
Base Product Number:
VIPER26
ECCN:
EAR99
Dimensions:
9.9 x 6mm
Mounting Type:
Surface Mount
Pin Count:
16
Package Type:
SO16N
Maximum Input Voltage:
800 V
RoHs Compliant
Checking for live stock

This is manufactured by STMicroelectronics. The manufacturer part number is VIPER26LDTR. The given dimensions of the product include 9.9 x 6mm. The product is available in surface mount configuration. It contains 16 pins. The package is a sort of so16n. 800 v is the maximum voltage of the bespoke product. It bears start up voltage of 13 v. It is assigned with possible HTSUS value of 8542.39.0060. The product is rohs3 compliant. 16-so is the supplier device package value. The product features power and watts of 20 w. The nominal breakdown voltage of 800v. The supply voltage of a bespoke product includes 11.5v ~ 23.5v. Moreover, the product comes in 16-soic (0.154", 3.90mm width). Internal switch options: yes. The switching frequency of the standard product is 60khz. In addition, it is reach unaffected. The product has -40°c ~ 150°c (tj) operating temperature range. The stmicroelectronics's product offers user-desired applications. Provides 70% duty cycles. Features either output isolation. Its typical moisture sensitivity level is 3 (168 hours). It has a long 18 weeks standard lead time. The product viper™ plus, is a highly preferred choice for users. Fault protection features include current limiting, over temperature. In addition, tape & reel (tr) is the available packaging type of the product. Topology includes flyback. Moreover, it corresponds to viper26, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Mult Dev 11/Nov/2022(PCN Assembly/Origin)
pdf icon
Viper26 29/Aug/2016(PCN Design/Specification)
pdf icon
VIPER26 Datasheet(Datasheets)
pdf icon
DT0036 Design Tip(Design Resources)
pdf icon
Datasheet - VIPER26LDTR(Technical Reference)
