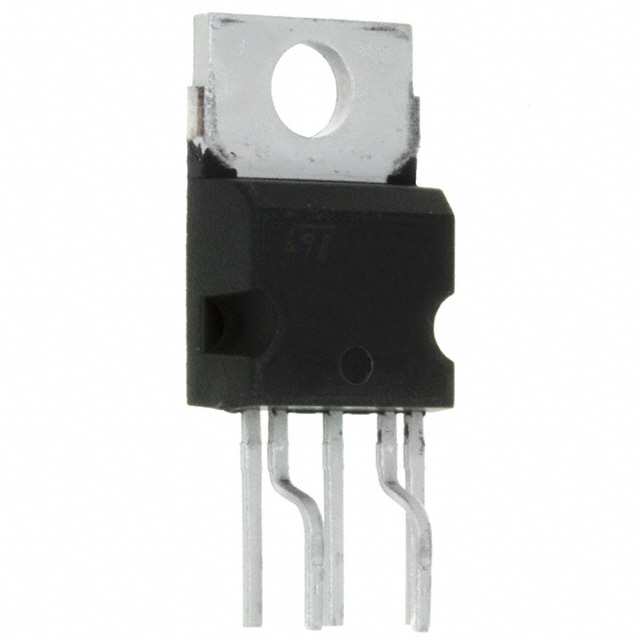

STMicroelectronics VIPER50A-E

VIPER50A-E STMicroelectronics
VIPER50A-E
VIPER50A-E
ET10937455
STMicroelectronics

Product Information

Output Current:
1.5 A
Dimensions:
10.4 x 4.8 x 9.2mm
Mounting Type:
Through Hole
Number of PWM Outputs:
1
Control Method:
Current
Maximum Switching Frequency:
200 kHz
Height:
9.2mm
Typical Operating Supply Voltage:
0 → 15 V
Width:
4.8mm
Length:
10.4mm
Package Type:
PENTAWATT
Rise Time:
50ns
Pin Count:
5
Fall Time:
100ns
Voltage - Start Up:
11 V
HTSUS:
8542.39.0060
RoHS Status:
ROHS3 Compliant
Supplier Device Package:
5-PENTAWATT
Power (Watts):
50 W
Voltage - Breakdown:
700V
Voltage - Supply (Vcc/Vdd):
8V ~ 15V
Package / Case:
Pentawatt-5 HV (Bent and Staggered Leads)
Internal Switch(s):
Yes
Frequency - Switching:
Up to 200kHz
title:
VIPER50A-E
REACH Status:
REACH Unaffected
edacadModel:
VIPER50A-E Models
edacadModelUrl:
/en/models/1653959
Operating Temperature:
-
Manufacturer:
STMicroelectronics
Control Features:
Frequency Control, Soft Start, Sync
Duty Cycle:
-
Output Isolation:
Isolated
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Through Hole
Series:
VIPER™
Fault Protection:
Current Limiting, Over Temperature
Packaging:
Tube
Topology:
Flyback
Base Product Number:
VIPER50
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by STMicroelectronics. The manufacturer part number is VIPER50A-E. It carries 1.5 a output current. The given dimensions of the product include 10.4 x 4.8 x 9.2mm. The product is available in through hole configuration. It has 1 PWM output(s) . It features current controlling mechanism. It has a maximum 200 khz switching frequency. In addition, the height is 9.2mm. It has 0 → 15 v of typical operating supply voltage. Furthermore, the product is 4.8mm wide. Its accurate length is 10.4mm. The package is a sort of pentawatt. Whereas, the rise time is 50ns . It contains 5 pins. Its fall time is about 100ns . It bears start up voltage of 11 v. It is assigned with possible HTSUS value of 8542.39.0060. The product is rohs3 compliant. 5-pentawatt is the supplier device package value. The product features power and watts of 50 w. The nominal breakdown voltage of 700v. The supply voltage of a bespoke product includes 8v ~ 15v. Moreover, the product comes in pentawatt-5 hv (bent and staggered leads). Internal switch options: yes. The switching frequency of the standard product is up to 200khz. In addition, it is reach unaffected. The stmicroelectronics's product offers user-desired applications. Possible control features include frequency control, soft start, sync. Features isolated output isolation. Its typical moisture sensitivity level is 1 (unlimited). The product viper™, is a highly preferred choice for users. Fault protection features include current limiting, over temperature. In addition, tube is the available packaging type of the product. Topology includes flyback. Moreover, it corresponds to viper50, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
VIPER50A(SP)-E(Datasheets)
