Maximum Temperature:
+45°C
Minimum Temperature:
0°C
Width:
30.7mm
MTBF:
>50000h
Output Voltage:
9V dc
Type:
AC/DC Adapter
Load Regulation:
±5%
Standards Met:
CE, CSA C22.2 No. 60601-1, cULus, EN 60601-1, EN 6100-3-2, EN 6100-3-3, EN 6100-4-11, EN 6100-4-2, EN 6100-4-3, EN 6100-4-4, EN 6100-4-5, EN 6100-4-6, EN 6100-4-8, IEC 60601-1, IEC 60950-1, ITE Approvals, RCM, TUV, UL/cUL Approval
Input Connector:
Universal Plug
Output Connector:
2.1 x 5.5 x 11 mm Centre Positive
Energy Efficiency Level:
VI
Input Voltage:
100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac
Depth:
73.5mm
Number of Outputs:
1
Length:
42.5mm
Medical Approved:
Yes
Output Current:
600mA
Plug Type:
Global Plug
Adapter Type:
Plug-In Adapter
Power Rating:
5.4W
Cable Length:
1.8m

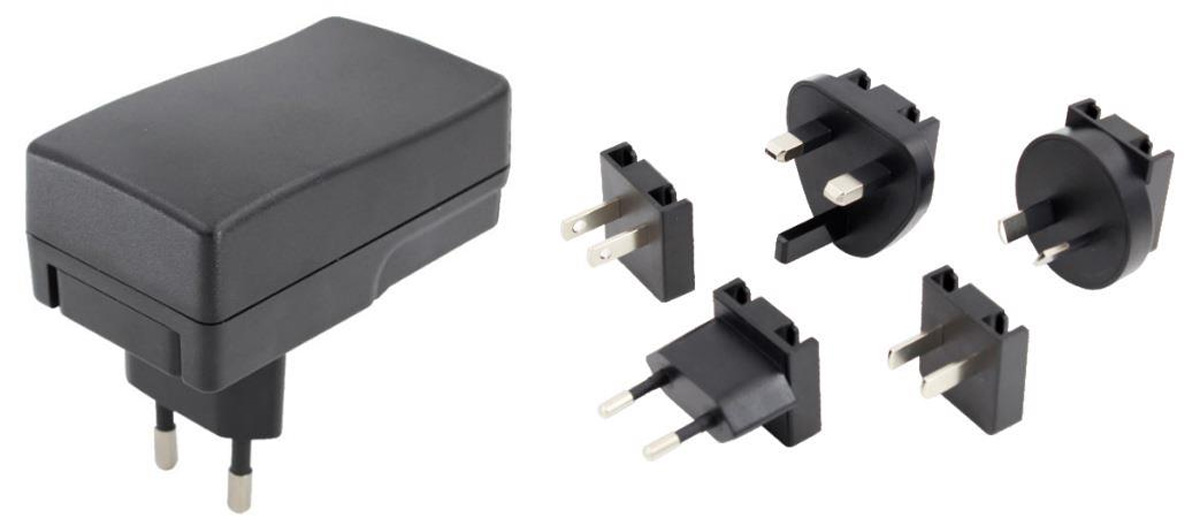

This is 5.4W Plug In Power Supply 9V dc 600mA Level VI 1 Output DC Plug Medical Approved manufactured by RS Pro. The manufacturer part number is 126-2114. The product has +45°c maximum temperature. While its minimum temperature is 0°c. Furthermore, the product is 30.7mm wide. The MTBF values include >50000h. Features a 9v dc output voltage. It comes in ac/dc adapter configuration. Load Regulation - ±5%. The product complies with all safety standards, such as ce, csa c22.2 no. 60601-1, culus, en 60601-1, en 6100-3-2, en 6100-3-3, en 6100-4-11, en 6100-4-2, en 6100-4-3, en 6100-4-4, en 6100-4-5, en 6100-4-6, en 6100-4-8, iec 60601-1, iec 60950-1, ite approvals, rcm, tuv, ul/cul approval. Input connector of universal plug. Features a versatile 2.1 x 5.5 x 11 mm centre positive output connector. Furthermore, its energy efficiency level is vi . Its input voltage is 100 v ac, 110 v ac, 115 v ac, 120 v ac, 127 v ac, 220 v ac, 230 v ac, 240v ac. The product comes in 73.5mm depth. Additionally, the product is supplied with 1 outputs. Its accurate length is 42.5mm. Medical Approval - yes. It carries 600ma output current. The plug is a highly reliable global plug with long service life. The adapter is a plug-in adapter. Feature 5.4w of power rating. Furthermore, the cable has a 1.8m of length.
