Beneficial and Vital Method of Soldering

Definition of soldering

Soldering is done by solder, and it is the process where solder provides a joint connection between two electrical components by melting solder. The solder is metal and creates a strong electrical connection between the parts. So soldering makes a permanent connection, but it can be removed by the desoldering tool.

What are the tools of soldering?

Before we start the process of solderings, we should know about the tools and materials of solderings. These tools are very important for solderings, and you can get more accurate results.

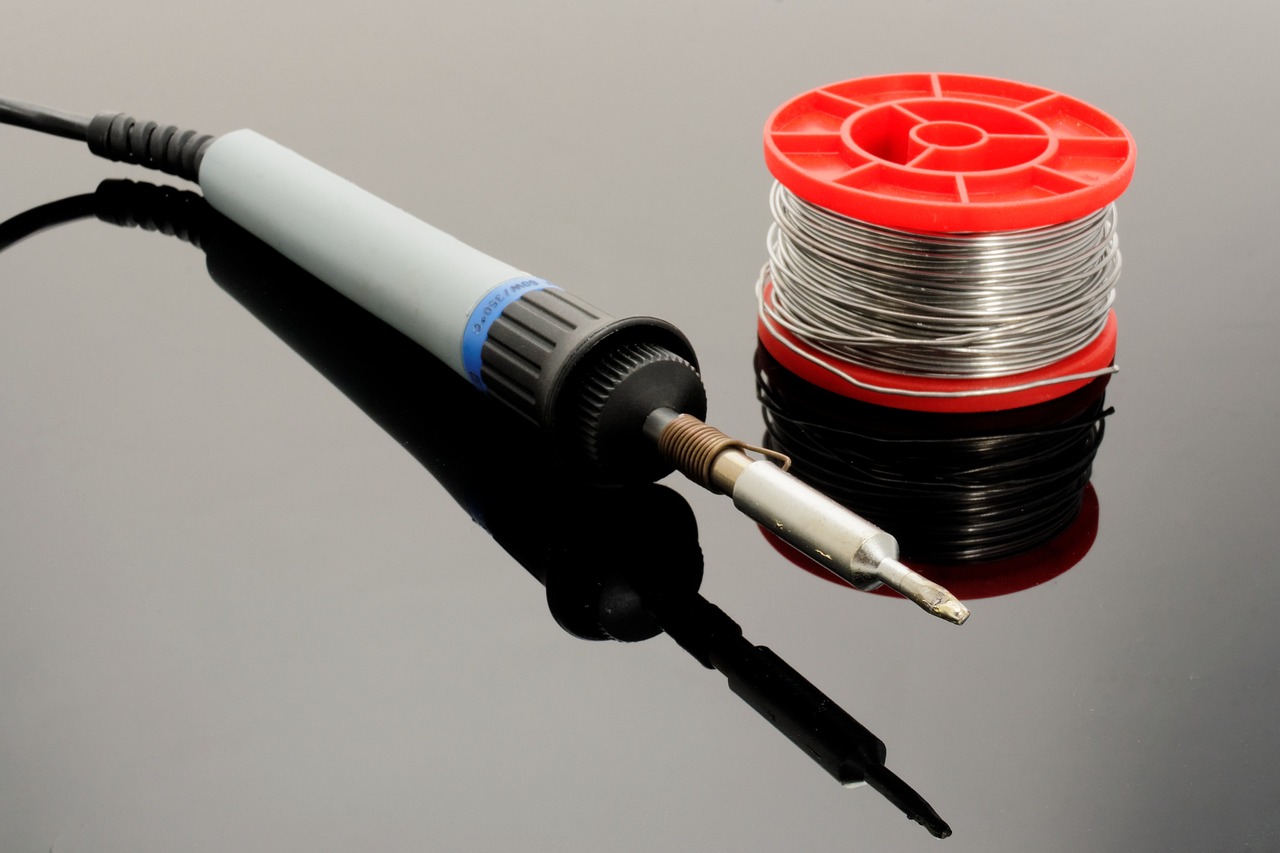

Soldering iron is significant

Soldering iron has a hand tool, and it plugs into a standard 120v Ac outlet; it produces heat and starts melting around electrical connections. So, it is a vital part of solderings, and it comes in many forms, like a gun or pen. If you are a beginner, then use a pen-style in the 15w to 30w range. There are interchangeable tips, and these are used for different soldering applications. Take some precautions if you are using soldering iron because it is heated up to 896 ‘F and is extremely hot.

More advanced soldering iron

A soldering station is more useful and provides more flexibility or control. So, they are more advanced for pen solderings. In addition, the soldering station can adjust the temperature of the soldering iron. These stations are safer and create safer space for advanced temperature sensors, alert settings or even password protection for security.

Soldering iron tips have many variations

Soldering iron tips are interchangeable, and these tips are available in many shapes or sizes. All the tips have many advantages, and soldering tips are used for many different purposes. There are two different tips that can be used in electronic projects.

• The conical tip is used in precision electronic solderings, and it has a fine tip. It also gives more heat to the smaller area because of its pointed tip.
• The Chisel tip is a well-suited tip for soldering wires and larger components due to its broad flat tip.

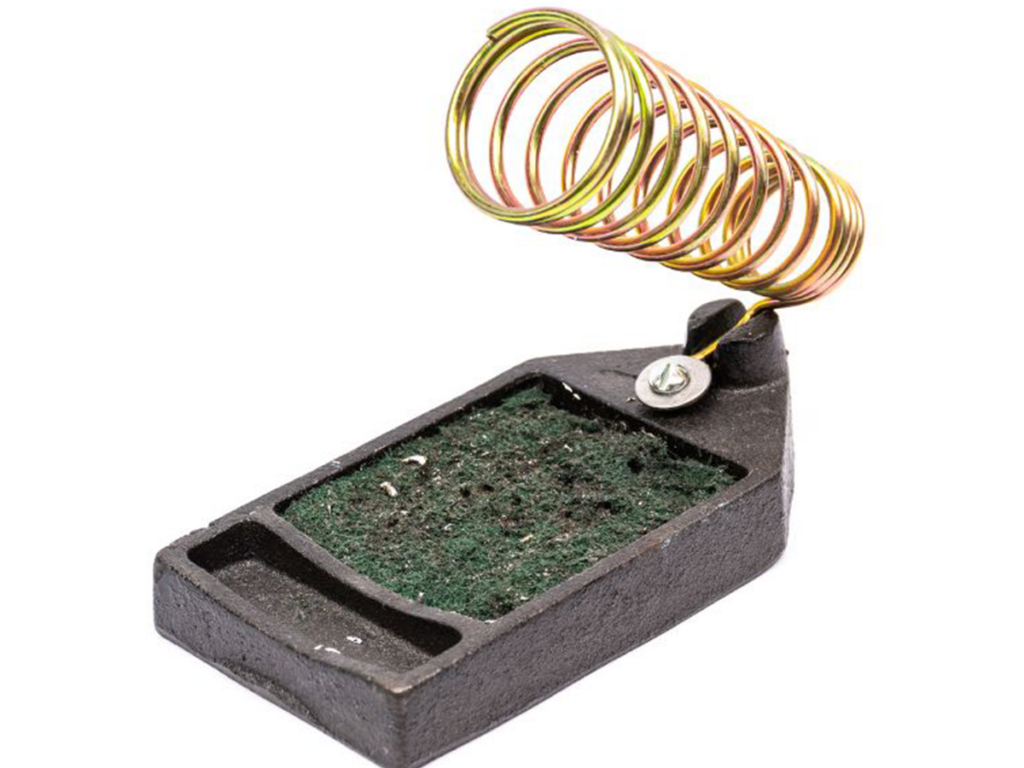

Brass or conventional sponge is a beneficial part

The sponge is useful for cleaning and helpful for removing oxidation. You can use a conventional wet sponge, but it has a short lifespan of the tip because of expansion or contraction. So, a wet sponge helps to drop the temperature of the tip.

Soldering iron stand is a basic part

A soldering iron stand is a vital part of the soldering iron and is very beneficial or easy to carry. It also escapes from the heated iron tip from hot material, or it can cause injury or burn. This soldering iron has a sponge or bras. Sponge for cleaning tip.

Solder is a main part

The soldier is a metal material that provides a permanent bond between electrical components. The lead-free rosin core solder is used for electronics solderings. This type of solderings are a mixture of tin or copper. But it is harmful to health, and it is not famous. If you are using lead solders, then you have to choose a ventilated area and wash your hands. Don’t use acid core solder because it would damage circuits or components. Acid core solders are used for plumbing and metalworking. A thicker diameter solder is used for larger joints more efficiently, but it is difficult to provide soldering for smaller joints. So, always use both sizes for different projects.

Helping hand is a third hand

A helping hand is like a device and has two or more alligator clips or magnifying glasses attached. This clip helps to hold the items when you are using the soldering iron or solder. So, it is a very beneficial or significant tool.

Some steps for safety

It is very important to take some steps for your safety of yourself while you are using the soldering iron. The temperature of the soldering iron is very hot, and it reaches 800 F. So, it is better to use a soldering handle and escape from accidents or burs damage. Always choose a ventilated area when you are using a soldering iron. There are some fumes released from the soldering iron when it is heated, which are harmful to the eyes or lungs. Therefore, it will be better to use a fume extractor that is a fan and has a charcoal filter which absorbs the harmful smoke. In addition, it is vital to use safety glass to protect from splashes OF HOT SODER. Likewise, always wash your hands after using a soldering iron.

How to tinning the tip?

When you start solderings, then you have to prepare your soldering iron by tinning the tip with solder. This process is very important for the flow of the heat, and there are some steps for tinning the tip.

• First of all, set the tip of the iron.
• Plug the switch of the iron, let start the heat and then control the temperature; it sets the temperature to 400 C /752
• Clean the tip with a damp, wet sponge and let the iron heat up.
• Hold the iron in one hand, and be careful when you touch the tip of the iron. Check that flow of the heat is accurate.

Procedure of soldering

The method of solderings are very easy to implement and understands here is the method of Solder a LED to a circuit board.

• Start with the amount of the component and insert the leads of the LED into the circuit board. This helps the component to build a better connection with the copper pad.
• Set the temperature of the iron at 400 ‘C and carefully touch the tip of the iron. Hold the iron for 3 to 4 seconds and let it heat up.
• Now it is the time to apply solder to the joint, and it is essential to heat the tip of the iron for a strong connection.
• Turn off the soldering iron and always make sure that the connection of the iron is strong when it is hot.

Process of desoldering

If you want to desolder, then you have to use desoldering braid. When you want to remove the joint, then place the piece of desoldering braid. Now, let the iron heat up and touch the tip of the braid. After that, when the joint is removed then, pick up the desoldering braid. If you want to remove so many solders, then you can use a solder sucker. So it is a very useful machine to remove many soldiers in less time
