Introduction
Maintaining a comfortable environment, ensuring proper ventilation, and cooling machinery are critical for productivity, safety, and well-being. At the heart of these essential functions lies the fan motor, a device responsible for generating airflow. These motors are the driving force behind air movement, playing a vital role in countless industries and our daily lives. Moreover, this guide will demystify these essential components, providing a clear overview of their significance, operation, common types, issues and solutions, and diverse applications.
What are Fan Motors? Definition and Key Components
Fan motors are compact electric motors specifically designed to drive a fan. These electromechanical devices are built to convert electrical energy form into rotational mechanical energy, which in turn rotates the fan blades. However, this creates a consistent airflow for cooling, ventilation, and heating applications in various devices and settings. A fan motor is characterised by its relatively simple construction, efficiency, and ability to operate at multiple speeds. Key components of these motors include:
- Rotor – The rotating part that is attached to the fan blades.
- Stator – The stationary component that provides the magnetic field.
- Windings – Copper coils that produce a magnetic field when current passes through them.
- Shaft – It connects the rotor to the fan blades and facilitates smooth rotation.
- Bearings – Allow the shaft (and, therefore, the fan blades) to rotate with minimal friction.
The Significance of Fan Motors in Enhancing Air Flow
Fan motors—the beating heart of any fan—are critical in enhancing airflow across various environments. By efficiently powering fans, they help regulate temperature, improve air quality, and reduce humidity, contributing to a healthier and more comfortable atmosphere. Moreover, modern fan motors are designed with energy efficiency and durability in mind, making them not only cost-effective but also environmentally friendly. In essence, high-efficiency fan motor models contribute significantly to improved comfort, energy efficiency, and overall system performance.
Basic Operating Principle of Fan Motors: How Do They Work?
The basic principle behind fan motor operation is electromagnetism. When an electric current passes through the motor’s windings, it creates a magnetic field. This magnetic field interacts with another magnetic field (either induced in the rotor in AC induction motors or created by permanent magnets in DC motors), causing the rotor to rotate. This rotation is then transferred to the fan blades via the shaft, creating airflow.
Most Common Types of Fan Motors Explained
Fan motors come in several varieties, each suited for different applications. Some standard types include:
AC Fan Motors
AC induction motors are the most familiar type of fan motor available in either single- or three-phase motors. They operate on alternating current (AC) and are particularly for household and light industrial applications. AC fan motors are known for their robust construction, reliability, and low cost. They are further categorised into:
- Permanent Split Capacitor (PSC) Motors – These are highly efficient and commonly used in ceiling fans, exhaust fans, and HVAC systems. PSC motors feature a capacitor permanently connected to the circuit, improving starting torque and efficiency.

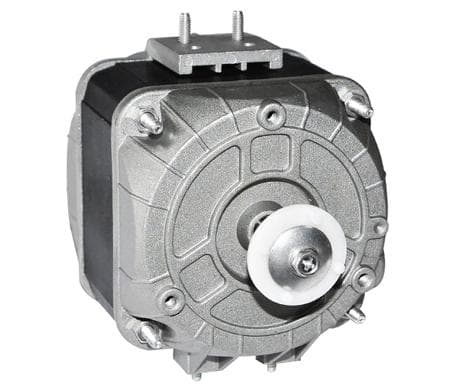

- Shaded Pole Motors – These are simpler and less expensive than PSC motors but also less efficient. They are often found in small fans, such as desk fans and small appliances.
DC Fan Motors
These motors operate on direct current (DC) and offer advantages in terms of speed control and efficiency, especially at lower speeds. They are becoming increasingly popular in applications requiring variable speed control, such as in some modern ceiling fans and automotive cooling systems. DC fan motors are subdivided into:
- Brushed DC Motors – These are simpler and cheaper than BLDC motors, but they can be noisier and require more maintenance due to brushes.
- Brushless DC (BLDC) Motors – BLDC fan motors are a type of DC motor that eliminates the need for brushes, resulting in higher efficiency, longer lifespan, and quieter operation. They are becoming more prevalent in high-efficiency fans and HVAC systems.
- ECM (Electronically Commutated Motors) – ECM motors are advanced brushless DC motors designed to change speeds automatically to match airflow needs. Their variable speed adjustments make them ideal for large-scale applications and HVAC systems.
Comparing Popular Fan Motors Based on Multiple Parameters
Motor Type | Efficiency | Durability | Noise | Cost |
AC Motor | Moderate | High | Moderate | Affordable |
DC Motor | High | Moderate | Low | Slightly Higher |
Brushless DC (BLDC) | Very High | Very High | Very Low | Premium |
Shaded Pole | Low | Low | High | Low |
What are Universal Fan Motors? A Brief Overview
Universal fan motors are versatile electric motors designed to operate on both power sources, AC and DC. Their design features a series-wound configuration, with the field coils connected in the series to the rotor windings. This design allows them to run on both AC and DC power, although their performance may vary slightly depending on the power source. The high starting torque and compact size of a universal fan motor make them ideal for use in power tools and small appliances, such as hairdryers, vacuum cleaners, and portable fans.
Signs Your Fan Motor Needs Replacement: Common Issues and Their Fixes
A faulty fan motor can lead to various problems, from poor cooling to complete system failure. Recognising the signs of a failing fan motor is crucial for timely replacement and preventing further damage. Here are some common signs and fixes of fan motors:
Fan Not Starting
It is the most obvious sign when the fan fails to start at all. This could be due to a completely dead motor or an electrical issue.
Fix: Check electrical connections, loose wiring or tripped breakers. Replace the capacitor if needed.
Humming Noise
Loud or unusual noises like rattling, grinding, or squealing indicate a problem with the motor.
Fix: Check for any loose parts and debris that might cause the noise. If everything seems secure, the motor bearings may be worn out, requiring motor replacement.
Slow-Moving Blades
If the fan blades move at a much slower pace than usual, it indicates a weakening motor.
Fix: Try cleaning the fan blades and motor housing to remove any debris or dust that may be hindering its movement.
Motor Overheating
If the motor is excessively hot to the touch, it indicates a problem.
Fix: Ensure proper ventilation or clean clogged parts.
Common Applications of Fan Motors Across Various Settings
Fan motors are utilised across a wide range of industries and settings, including:
- Residential Use: Ceiling fans, table fans, and air conditioners all rely on fan motors to circulate air and maintain comfortable indoor temperatures.
- Industrial and Commercial Environments: Ventilation systems in factories, data centers, and warehouses use larger motors to manage heat and ensure a safe working environment.
- Automotive and Transportation: Cooling fans for engines, HVAC systems in vehicles, and even electric vehicle components rely on specialised motors.
- Electronics and Computing: Small, efficient fan motor models are crucial for cooling processors, GPUs, and power supplies in computers and other electronic devices.
Final Thoughts
Fan motors are essential components in countless applications. Understanding their fundamentals empowers you to select the right model for your needs and maintain it efficiently. Whether you require a compact solution for home use or a heavy-duty system for industrial applications, the right motor type can significantly improve air circulation, energy usage, and overall performance.
